The Essential Guide to Water Heater TPR Discharge Tubes

Introduction:

Water heaters are essential appliances in homes and commercial buildings, providing hot water for various purposes. Water heaters are equipped with a Temperature and Pressure Relief (TPR) valve to ensure their safe and efficient operation. This valve is designed to release excess pressure or high-temperature water from the tank to prevent potential hazards. To direct this discharge safely, water heaters are fitted with TPR discharge tubes. In this blog, we will delve into the importance of TPR discharge tubes, their installation, maintenance, and safety considerations.

Importance of TPR Discharge Tubes:

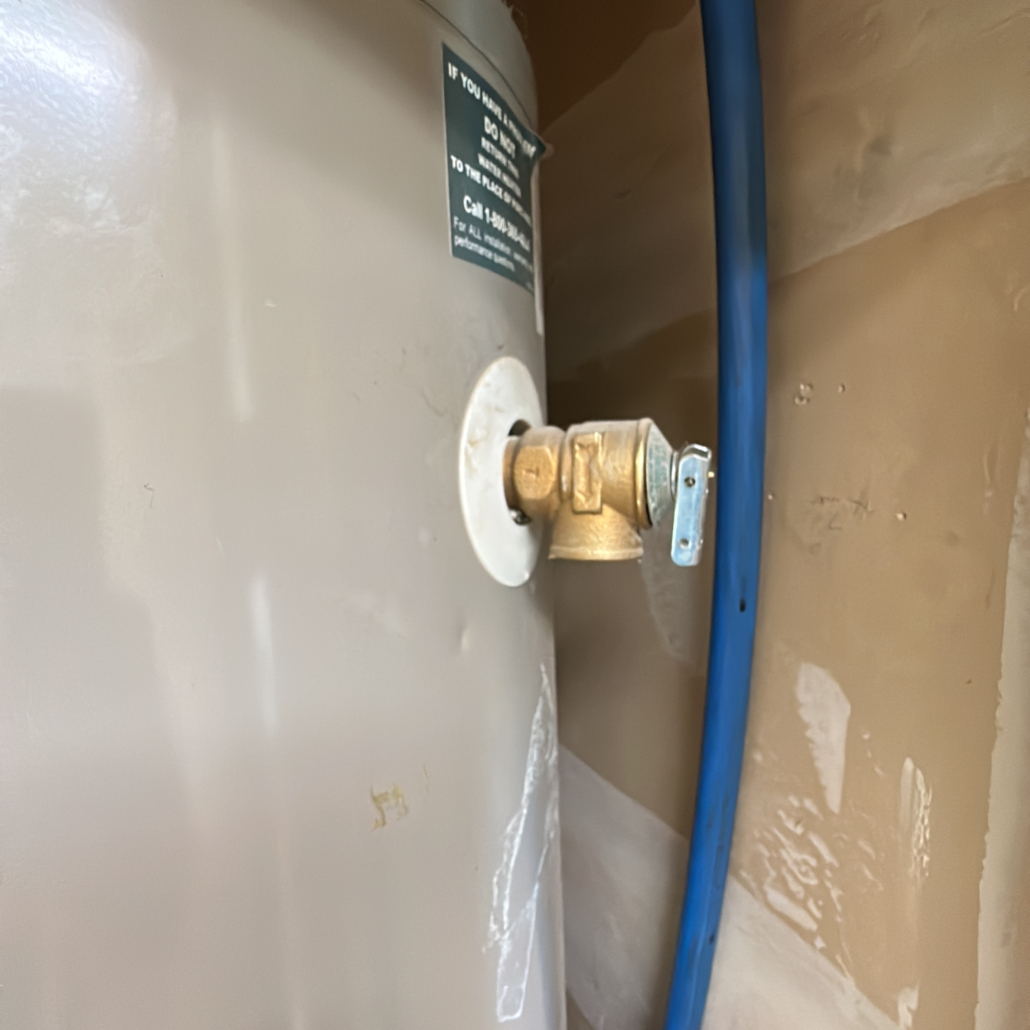

The TPR valve acts as a crucial safety feature for water heaters, as it prevents catastrophic failures and potential explosions. When the temperature or pressure inside the water heater exceeds safe limits, the TPR valve automatically opens and releases hot water and pressure through the discharge tube. This prevents the water heater from bursting or causing damage to the surrounding area.

Installation and Requirements:

1. Size and Material: The TPR discharge tube should have a diameter of at least ¾ inches to allow for efficient flow. It is recommended to use CPVC, copper, polyethylene, galvanized steel, polypropylene, or stainless steel pipes, as they are resistant to high temperatures and provide durability. PVC pipes are not suitable for TPR discharge tubes due to their susceptibility to melting.

2. Length and Direction: The TPR discharge tube should extend to within six inches of the floor or be connected to an indirect waste receptor. It should also be positioned to discharge away from people, electrical devices, or areas where the hot water could cause harm.

3. No Obstructions: The TPR discharge tube must not have any elbows, restrictions, or valves that may impede water flow. It should provide a direct and unobstructed path for the discharge to prevent blockages and pressure build-up.

Maintenance and Safety Considerations:

1. Regular Inspection: Periodically check the TPR discharge tube for signs of leaks, damage, or blockages. Ensure that the tube is securely connected to the TPR valve and that the discharge end is unobstructed.

2. Flushing: Sediment and debris can accumulate inside the TPR valve and discharge tube over time, hindering their functionality. Flushing the system annually can help remove any build-up and maintain proper operation.

3. Safety Measures: Avoid placing any objects near the TPR discharge tube that could obstruct its flow or hinder its purpose. Do not cap or plug the end of the discharge tube, as it needs to provide a free path for water and pressure release.

4. Professional Inspection: It is advisable to have a professional plumber inspect the TPR discharge tube and overall water heater system periodically. They can ensure proper installation, functionality, and adherence to local plumbing codes and regulations.

Conclusion:

TPR discharge tubes play a vital role in maintaining the safety and efficiency of water heaters. Understanding their importance, proper installation, and regular maintenance are key to preventing potential hazards associated with high temperatures and pressure. By following the guidelines outlined in this blog, homeowners and building owners can ensure their water heaters are equipped with reliable TPR discharge tubes, providing peace of mind and protection against potential emergencies.
